VPT, Inc. is a global leader in providing power conversion solutions for use in avionics, military, and space applications.

VPT offers high reliability DC-DC converters, EMI filters, accessory power products, and custom engineering services for the rapid development of critical power systems.



We are honored to introduce the new products announced from the VPT with the following products:

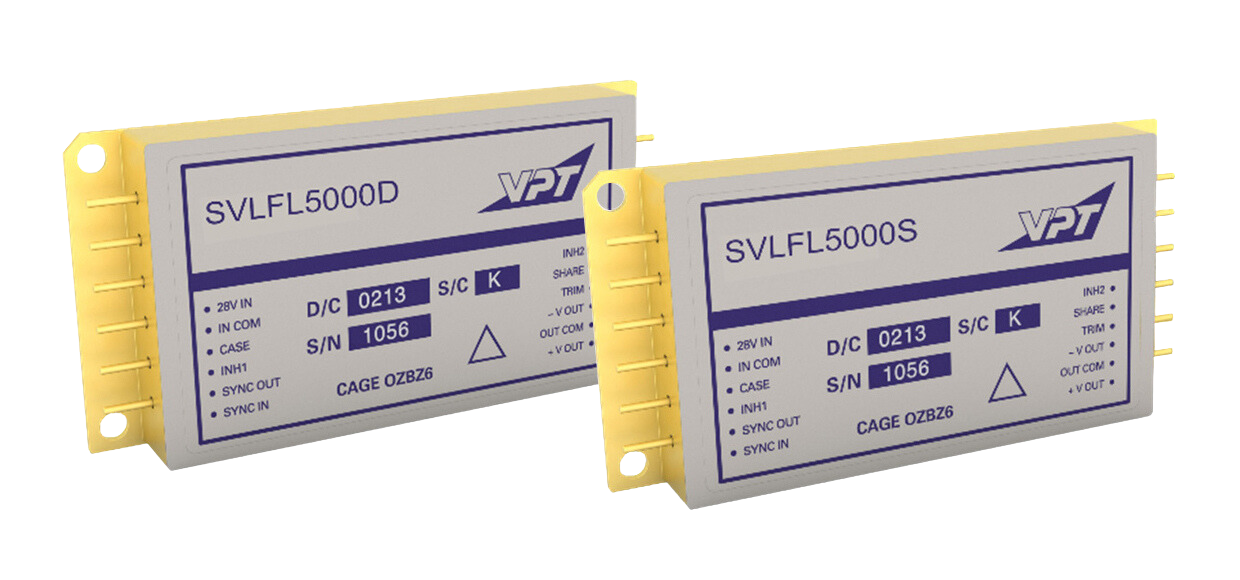

SVLFL5000D DC-DC Converter                    相關型錄   SVLFL5000S DC-DC Converter                    相關型錄

Dual output options of 5V (100 W), 12V (110 W), and 15V (120 W)

  • Space-qualified DC-DC converter brick
  • Input Voltage: 30~80VDC, 50VDC(typ.)
  • Output Voltage: 4.8~15.45VDC, 120W(max.)
  • Input Ripple: 50-100mApp. (Full Load, 20Hz to 10MHz)
  • Output Ripple: 30-80mVpp. (Full Load, 20Hz to 10MHz)

Single output options of 3.3V (66 W), 5V (100 W), 12V(110 W), and 15V (120 W)

  • Space-qualified DC-DC converter brick
  • Input Voltage: 30~80VDC, 50VDC(typ.)
  • Output Voltage: 3.250~15.225VDC, 120W(max.)
  • Input Ripple: 35-100mApp. (Full Load, 20Hz to 10MHz)
  • Output Ripple: 30-125mVpp. (Full Load, 20Hz to 10MHz)

 ● Continuous operation over full military temperature range of -55°C to +125°C with no power derating
 ● Very low output noise
 ● Parallel up to 4 units with current sharing
 ● Output voltage trim up +10% or down -20%
 ● Qualified to MIL-PRF-38534 Class K on DLA SMD# TBD
 ● MIL-PRF-38534 element evaluated components
 ● MIL-STD-461 C/D/E/F when used with appropriate VPT EMI filter
 ● Manufactured in a MIL-PRF-38534 Class H and Class K facility
 ● Manufactured in an ISO9001, MIL-PRF-38534 Class H and Class K facility





Space Qualified DC-DC Converters Rad Hard, MIL-PRF-38534 Class K   Avionics / Military DC-DC Converters MIL-PRF-38534 Class H & Class K   Hi-Rel COTS DC-DC Converters Built for rugged duty   High Temperature DC-DC Converters Built for harsh environments DC-DC Converters Built for harsh environments





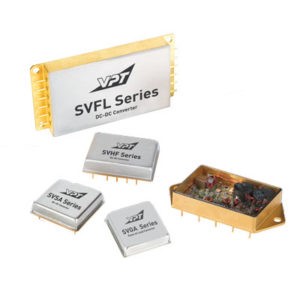

Space DC-DC Converters

The Voice of Experience in Space




If your program is headed for the final frontier and your system requires space-qualified, MIL-PRF-38534 Class H or Class K power, rely on VPT.

Create a reliable power distribution system with a complete array of radiation tolerant or radiation hardened isolated DC-DC converters, radiation hardened non-isolated point of load converters,

and radiation immune EMI filters in varying TID and SEE levels to fit LEO, MEO, GEO, deep space, or launch programs.

VPT offers two series of standard DC-DC converters and accessories designed, tested, and proven for the challenging environment of space. VPT is proud

to be able to offer products designed and manufactured in accordance with the latest revision of MIL-PRF-38534 Class K.



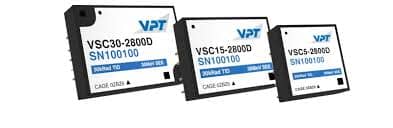

DC-DC Converters for Space – Isolated

Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

100

VSC100-2800S

16-40

Single +3, +5, +12, +15

30 krad(Si) including LDR

30 MeV/mg/cm²

N/A

N/A

VSC100-2800S Part Number

 VSC100-2800S Part Number

VSC100-2800S Part Number

 VSC100-2800S Part Number

VSC100-283R3S/ES+

 VSC100-2805S/ES+

VSC100-2812S/ES+

 VSC100-2815S/ES+

Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

1.5

SVRCH2800S

16-40

Single 3.3, 5, 12, 15

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-17221

Standard Microcircuit Drawing Number

SVRCH2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVRCH2800S Series Similar Part Number

5962R1722101HXC

5962R1722101HXA

5962R1722101KXC

5962R1722101KXA

5962R1722102HXC

5962R1722102HXA

5962R1722102KXC

5962R1722102KXA

SVRCH283R3S/H+

SVRCH283R3S/H+-E

SVRCH283R3S/K

SVRCH283R3S/K-E

SVRCH2805S/H+

SVRCH2805S/H+-E

SVRCH2805S/K

SVRCH2805S/K-E

5962R1722103HXC

5962R1722103HXA

5962R1722103KXC

5962R1722103KXA

5962R1722104HXC

5962R1722104HXA

5962R1722104KXC

5962R1722104KXA

SVRCH2812S/H+

SVRCH2812S/H+-E

SVRCH2812S/K

SVRCH2812S/K-E

SVRCH2815S/H+

SVRCH2815S/H+-E

SVRCH2815S/K

SVRCH2815S/K-E

Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

1.5

SVRCH2800D

16-40

Dual ±5, ±12, ±15

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-17222

Standard Microcircuit Drawing Number

SVRCH2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVRCH2800D Series Similar Part Number

5962R1722201HXC

5962R1722201HXA

5962R1722201KXC

5962R1722201KXA

5962R1722202HXC

5962R1722202HXA

SVRCH2805D/H+

SVRCH2805D/H+-E

SVRCH2805D/K

SVRCH2805D/K-E

SVRCH2812D/H+

SVRCH2812D/H+-E

5962R1722202KXC

5962R1722202KXA

5962R1722203HXC

5962R1722203HXA

5962R1722203KXC

5962R1722203KXA

SVRCH2812D/K

SVRCH2812D/K-E

SVRCH2815D/H+

SVRCH2815D/H+-E

SVRCH2815D/K

SVRCH2815D/K-E

Max. Output

Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

5

VSC5-2800S

15-50

Single 3.3, 5, 12, 15

30 krad(Si) including LDR

30 MeV/mg/cm²

N/A

N/A

VSC5-2800S Series Similar Part Number

VSC5-283R3S

VSC5-2812S

VSC5-2805S

VSC5-2815S


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

5

VSC5-2800D

15-50

Dual ±5, ±12, ±15

30 krad(Si) including LDR

30 MeV/mg/cm²

N/A

N/A

VSC5-2800D Series Similar Part Number

VSC5-2805D

VSC5-2812D

VSC5-2815D




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

6

SVSA2800S

15-50

Single 3.3, 5, 5.2, 12, 15

60 krad(Si) including LDR

44 MeV/mg/cm²

N/A

5962-11219

Standard Microcircuit Drawing Number

SVSA2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVSA2800S Series Similar Part Number

5962P1121901HXC

5962P1121901HXA

5962P1121902HXC

5962P1121902HXA

5962P1121903HXC

5962P1121903HXA

SVSA283R3S/H+

SVSA283R3S/H+-E

SVSA2805S/H+

SVSA2805S/H+-E

SVSA2812S/H+

SVSA2812S/H+-E

5962P1121904HXC

5962P1121904HXA

5962P1121905HXC

5962P1121905HXA

5962P1121906HXC

5962P1121906HXA

SVSA2815S/H+

SVSA2815S/H+-E

SVSA285R2S/H+

SVSA285R2S/H+-E

SVSA2807S/H+

SVSA2807S/H+-E

Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

6

SVSA2800D

15-50

Dual ±5, ±7, ±12, ±15

60 krad(Si) including LDR

44 MeV/mg/cm²

N/A

5962-11216

Standard Microcircuit Drawing Number

SVSA2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVSA2800D Series Similar Part Number

5962P1121601HXC

5962P1121601HXA

5962P1121602HXC

5962P1121602HXA

SVSA2805D/H+

SVSA2805D/H+E

SVSA2812D/H+

SVSA2812D/H+E

5962P1121603HXC

5962P1121603HXA

5962P1121604HXC

5962P1121604HXA

SVSA2815D/H+

SVSA2815D/H+E

SVSA2807D/H+

SVSA2807D/H+-E



Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

6

SVRSA2800S

18-40

Single 3.3, 5, 12, 15

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-15217

Standard Microcircuit Drawing Number

SVRSA2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVRSA2800S Series Similar Part Number

5962R1521701HXC

5962R1521701HXA

5962R1521701HYC

5962R1521701HYA

5962R1521701KXC

5962R1521701KXA

5962R1521701KYC

5962R1521701KYA

5962R1521702HXC

5962R1521702HXA

5962R1521702HYC

5962R1521702HYA

5962R1521702KXC

5962R1521702KXA

5962R1521702KYC

5962R1521702KYA

SVRSA283R3S/H+

SVRSA283R3S/H+-E

SVRSA283R3SF/H+

SVRSA283R3SF/H+-E

SVRSA283R3S/K

SVRSA283R3S/K-E

SVRSA283R3SF/K

SVRSA283R3SF/K-E

SVRSA2805S/H+

SVRSA2805S/H+-E

SVRSA2805SF/H+

SVRSA2805SF/H+-E

SVRSA2805S/K

SVRSA2805S/K-E

SVRSA2805SF/K

SVRSA2805SF/K-E

5962R1521703HXC

5962R1521703HXA

5962R1521703HYC

5962R1521703HYA

5962R1521703KXC

5962R1521703KXA

5962R1521703KYC

5962R1521703KYA

5962R1521704HXC

5962R1521704HXA

5962R1521704HYC

5962R1521704HYA

5962R1521704KXC

5962R1521704KXA

5962R1521704KYC

5962R1521704KYA

SVRSA2812S/H+

SVRSA2812S/H+-E

SVRSA2812SF/H+

SVRSA2812SF/H+-E

SVRSA2812S/K

SVRSA2812S/K-E

SVRSA2812SF/K

SVRSA2812SF/K-E

SVRSA2815S/H+

SVRSA2815S/H+-E

SVRSA2815SF/H+

SVRSA2815SF/H+-E

SVRSA2815S/K

SVRSA2815S/K-E

SVRSA2815SF/K

SVRSA2815SF/K-E



Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

6

SVRSA2800D

18-40

Dual ±5, ±12, ±15

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-15218

Standard Microcircuit Drawing Number

SVRSA2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVRSA2800D Series Similar Part Number

5962R1521801HXC

5962R1521801HXA

5962R1521801HYC

5962R1521801HYA

5962R1521801KXC

5962R1521801KXA

5962R1521801KYC

5962R1521801KYA

5962R1521802HXC

5962R1521802HXA

5962R1521802HYC

5962R1521802HYA

SVRSA2805D/H+

SVRSA2805D/H+-E

SVRSA2805DF/H+

SVRSA2805DF/H+-E

SVRSA2805D/K

SVRSA2805D/K-E

SVRSA2805DF/K

SVRSA2805DF/K-E

SVRSA2812D/H+

SVRSA2812D/H+-E

SVRSA2812DF/H+

SVRSA2812DF/H+-E

5962R1521802KXC

5962R1521802KXA

5962R1521802KYC

5962R1521802KYA

5962R1521803HXC

5962R1521803HXA

5962R1521803HYC

5962R1521803HYA

5962R1521803KXC

5962R1521803KXA

5962R1521803KYC

5962R1521803KYA

SVRSA2812D/K

SVRSA2812D/K-E

SVRSA2812DF/K

SVRSA2812DF/K-E

SVRSA2815D/H+

SVRSA2815D/H+-E

SVRSA2815DF/H+

SVRSA2815DF/H+-E

SVRSA2815D/K

SVRSA2815D/K-E

SVRSA2815DF/K

SVRSA2815DF/K-E

Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

15

VSC15-2800S

15-50

Single 3.3, 5, 12, 15 (trimmable)

30 krad(Si) including LDR

30 MeV/mg/cm²

N/A

N/A

VSC15-2800S Series Similar Part Number

VSC15-283R3S

VSC15-2805S

VSC15-2812S

VSC15-2815S



Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

15

VSC15-2800D

15-50

Dual ±5, ±12, ±15

30 krad(Si) including LDR

30 MeV/mg/cm²

N/A

N/A

VSC15-2800D Series Similar Part Number

VSC15-2805D

VSC15-2812D

VSC15-2815D



Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

15

SVRHF2800S

18-40

Single 3.3, 5, 12, 15

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-13231

Standard Microcircuit Drawing Number

SVRSA2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVRSA2800D Series Similar Part Number

5962R1323101HXC

5962R1323101HXA

5962R1323101HYC

5962R1323101HYA

5962R1323101KXC

5962R1323101KXA

5962R1323101KYC

5962R1323101KYA

5962R1323102HXC

5962R1323102HXA

5962R1323102HYC

5962R1323102HYA

5962R1323102KXC

5962R1323102KXA

5962R1323102KYC

5962R1323102KYA

SVRHF283R3S/H+

SVRHF283R3S/H+-E

SVRHF283R3SF/H+

SVRHF283R3SF/H+-E

SVRHF283R3S/K

SVRHF283R3S/K-E

SVRHF283R3SF/K

SVRHF283R3SF/K-E

SVRHF2805S/H+

SVRHF2805S/H+-E

SVRHF2805SF/H+

SVRHF2805SF/H+-E

SVRHF2805S/K

SVRHF2805S/K-E

SVRHF2805SF/K

SVRHF2805SF/K-E

5962R1323103HXC

5962R1323103HXA

5962R1323103HYC

5962R1323103HYA

5962R1323103KXC

5962R1323103KXA

5962R1323103KYC

5962R1323103KYA

5962R1323104HXC

5962R1323104HXA

5962R1323104HYC

5962R1323104HYA

5962R1323104KXC

5962R1323104KXA

5962R1323104KYC

5962R1323104KYA

SVRHF2812S/H+

SVRHF2812S/H+-E

SVRHF2812SF/H+

SVRHF2812SF/H+-E

SVRHF2812S/K

SVRHF2812S/K-E

SVRHF2812SF/K

SVRHF2812SF/K-E

SVRHF2815S/H+

SVRHF2815S/H+-E

SVRHF2815SF/H+

SVRHF2815SF/H+-E

SVRHF2815S/K

SVRHF2815S/K-E

SVRHF2815SF/K

SVRHF2815SF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

15

SVRHF2800D

18-40

Dual ±5, ±12, ±15

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-13232

Standard Microcircuit Drawing Number

SVRHF2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVRHF2800D Series Similar Part Number

5962R1323201HXC

5962R1323201HXA

5962R1323201HYC

5962R1323201HYA

5962R1323201KXC

5962R1323201KXA

5962R1323201KYC

5962R1323201KYA

5962R1323202HXC

5962R1323202HXA

5962R1323202HYC

5962R1323202HYA

SVRHF2805D/H+

SVRHF2805D/H+-E

SVRHF2805DF/H+

SVRHF2805DF/H+-E

SVRHF2805D/K

SVRHF2805D/K-E

SVRHF2805DF/K

SVRHF2805DF/K-E

SVRHF2812D/H+

SVRHF2812D/H+-E

SVRHF2812DF/H+

SVRHF2812DF/H+-E

5962R1323202KXC

5962R1323202KXA

5962R1323202KYC

5962R1323202KYA

5962R1323203HXC

5962R1323203HXA

5962R1323203HYC

5962R1323203HYA

5962R1323203KXC

5962R1323203KXA

5962R1323203KYC

5962R1323203KYA

SVRHF2812D/K

SVRHF2812D/K-E

SVRHF2812DF/K

SVRHF2812DF/K-E

SVRHF2815D/H+

SVRHF2815D/H+-E

SVRHF2815DF/H+

SVRHF2815DF/H+-E

SVRHF2815D/K

SVRHF2815D/K-E

SVRHF2815DF/K

SVRHF2815DF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

20

SVHF2800S

15-50

Single 2.5, 3.3, 5, 5.2, 12, 15

60 krad(Si) including LDR

44 MeV/mg/cm²

N/A

5962-11218

Standard Microcircuit Drawing Number

SVHF2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVHF2800S Series Similar Part Number

5962P1121801HXC

5962P1121801HXA

5962P1121801HYC

5962P1121801HYA

5962P1121802HXC

5962P1121802HXA

5962P1121802HYC

5962P1121802HYA

5962P1121803HXC

5962P1121803HXA

5962P1121803HYC

5962P1121803HYA

5962P1121804HXC

5962P1121804HXA

SVHF283R3S/H+

SVHF283R3S/H+-E

SVHF283R3SF/H+

SVHF283R3SF/H+-E

SVHF2805S/H+

SVHF2805S/H+-E

SVHF2805SF/H+

SVHF2805SF/H+-E

SVHF2812S/H+

SVHF2812S/H+-E

SVHF2812SF/H+

SVHF2812SF/H+-E

SVHF2815S/H+

SVHF2815S/H+-E

5962P1121804HYC

5962P1121804HYA

5962P1121805HXC

5962P1121805HXA

5962P1121805HYC

5962P1121805HYA

5962P1121806HXC

5962P1121806HXA

5962P1121806HYC

5962P1121806HYA

5962P1121807HXC

5962P1121807HXA

5962P1121807HYC

5962P1121807HYA

SVHF2815SF/H+

SVHF2815SF/H+-E

SVHF282R5S/H+

SVHF282R5S/H+-E

SVHF282R5SF/H+

SVHF282R5SF/H+-E

SVHF285R2S/H+

SVHF285R2S/H+-E

SVHF285R2SF/H+

SVHF285R2SF/H+-E

SVHF285R7S/H+

SVHF285R7S/H+-E

SVHF285R7SF/H+

SVHF285R7SF/H+-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

20

SVHF2800D

15-50

Dual ±5, ±12, ±15

60 krad(Si) including LDR

44 MeV/mg/cm²

N/A

5962-11215

Standard Microcircuit Drawing Number

SVHF2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVHF2800D Series Similar Part Number

5962P1121501HXC

5962P1121501HXA

5962P1121501HYC

5962P1121501HYA

5962P1121502HXC

5962P1121502HXA

TBD

TBD

SVHF2805D/H+

SVHF2805D/H+-E

SVHF2805DF/H+

SVHF2805DF/H+-E

SVHF2812D/H+

SVHF2812D/H+-E

SVHF2807D/H+

SVHF2807D/H+-E

5962P1121502HYC

5962P1121502HYA

5962P1121503HXC

5962P1121503HXA

5962P1121503HYC

5962P1121503HYA

TBD

TBD

SVHF2812DF/H+

SVHF2812DF/H+-E

SVHF2815D/H+

SVHF2815D/H+-E

SVHF2815DF/H+

SVHF2815DF/H+-E

SVHF2807DF/H+

SVHF2807DF/H+-E

Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

20

SVLHF2800S

15-50

Single 3.3, 5, 12, 15

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-22204

Standard Microcircuit Drawing Number

SVLHF2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVLHF2800S Series Similar Part Number

5962L2220401HXC

5962L2220401HXA

5962L2220401HYC

5962L2220401HYA

5962L2220401KXC

5962L2220401KXA

5962L2220401KYC

5962L2220401KYA

5962L2220402HXC

5962L2220402HXA

5962L2220402HYC

5962L2220402HYA

5962L2220402KXC

5962L2220402KXA

5962L2220402KYC

5962L2220402KYA

SVLHF283R3S/H+

SVLHF283R3S/H+-E

SVLHF283R3SF/H+

SVLHF283R3SF/H+-E

SVLHF283R3S/K

SVLHF283R3S/K-E

SVLHF283R3SF/K

SVLHF283R3SF/K-E

SVLHF2805S/H+

SVLHF2805S/H+-E

SVLHF2805SF/H+

SVLHF2805SF/H+-E

SVLHF2805S/K

SVLHF2805S/K-E

SVLHF2805SF/K

SVLHF2805SF/K-E

5962L2220403HXC

5962L2220403HXA

5962L2220403HYC

5962L2220403HYA

5962L2220403KXC

5962L2220403KXA

5962L2220403KYC

5962L2220403KYA

5962L2220404HXC

5962L2220404HXA

5962L2220404HYC

5962L2220404HYA

5962L2220404KXC

5962L2220404KXA

5962L2220404KYC

5962L2220404KYA

SVLHF2812S/H+

SVLHF2812S/H+-E

SVLHF2812SF/H+

SVLHF2812SF/H+-E

SVLHF2812S/K

SVLHF2812S/K-E

SVLHF2812SF/K

SVLHF2812SF/K-E

SVLHF2815S/H+

SVLHF2815S/H+-E

SVLHF2815SF/H+

SVLHF2815SF/H+-E

SVLHF2815S/K

SVLHF2815S/K-E

SVLHF2815SF/K

SVLHF2815SF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

20

SVLHF2800D

15-50

Dual ±5, ±12, ±15

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-22205

Standard Microcircuit Drawing Number

SVLHF2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVLHF2800D Series Similar Part Number

5962L2220501HXC

5962L2220501HXA

5962L2220501HYC

5962L2220501HYA

5962L2220501KXC

5962L2220501KXA

5962L2220501KYC

5962L2220501KYA

5962L2220502HXC

5962L2220502HXA

5962L2220502HYC

5962L2220502HYA

SVLHF2805DF/H+

SVLHF2805DF/H+

SVLHF2805DF/H+

SVLHF2805DF/H+-E

SVLHF2805D/K

SVLHF2805DF/K

SVLHF2805DF/K

SVLHF2805DF/K-E

SVLHF2812D/H+

SVLHF2812D/H+-E

SVLHF2812DF/H+

5962L2220502HYA

5962L2220502KXC

5962L2220502KXA

5962L2220502KYC

5962L2220502KYA

5962L2220503HXC

5962L2220503HXA

5962L2220503HYC

5962L2220503HYA

5962L2220503KXC

5962L2220503KXA

5962L2220503KYC

5962L2220503KYA

SVLHF2812D/K

SVLHF2812D/K-E

SVLHF2812DF/K

SVLHF2812DF/K-E

SVLHF2815D/H+

SVLHF2815D/H+-E

SVLHF2815DF/H+

SVLHF2815DF/H+-E

SVLHF2815D/K

SVLHF2815D/K-E

SVLHF2815DF/K

SVLHF2815DF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

20

SVLHF5000S

30-60

Single 3.3, 5, 12, 15, 28

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-22208

Standard Microcircuit Drawing Number

SVLHF5000S Series Similar Part Number

Standard Microcircuit Drawing Number

SVLHF5000S Series Similar Part Number

5962L2220801HXC

5962L2220801HXA

5962L2220801HYC

5962L2220801HYA

5962L2220801KXC

5962L2220801KXA

5962L2220801KYC

5962L2220801KYA

5962L2220802HXC

5962L2220802HXA

5962L2220802HYC

5962L2220802HYA

5962L2220802KXC

5962L2220802KXA

5962L2220802KYC

5962L2220802KYA

TBD

TBD

TBD

TBD

SVLHF503R3S/H+

SVLHF503R3S/H+-E

SVLHF503R3SF/H+

SVLHF503R3SF/H+-E

SVLHF503R3S/K

SVLHF503R3S/K-E

SVLHF503R3SF/K

SVLHF503R3SF/K-E

SVLHF5005S/H+

SVLHF5005S/H+-E

SVLHF5005SF/H+

SVLHF5005SF/H+-E

SVLHF5005S/K

SVLHF5005S/K-E

SVLHF5005SF/K

SVLHF5005SF/K-E

SVLHF5028S/H+

SVLHF5028S/H+-E

SVLHF5028SF/H+

SVLHF5028SF/H+-E

5962L2220803HXC

5962L2220803HXA

5962L2220803HYC

5962L2220803HYA

5962L2220803KXC

5962L2220803KXA

5962L2220803KYC

5962L2220803KYA

5962L2220804HXC

5962L2220804HXA

5962L2220804HYC

5962L2220804HYA

5962L2220804KXC

5962L2220804KXA

5962L2220804KYC

5962L2220804KYA

TBD

TBD

TBD

TBD

SVLHF5012S/H+

SVLHF5012S/H+-E

SVLHF5012SF/H+

SVLHF5012SF/H+-E

SVLHF5012S/K

SVLHF5012S/K-E

SVLHF5012SF/K

SVLHF5012SF/K-E

SVLHF5015S/H+

SVLHF5015S/H+-E

SVLHF5015SF/H+

SVLHF5015SF/H+-E

SVLHF5015S/K

SVLHF5015S/K-E

SVLHF5015SF/K

SVLHF5015SF/K

SVLHF5028S/K

SVLHF5028S/K-E

SVLHF5028SF/K

SVLHF5028SF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

20

SVLHF5000D

30-60

Dual ±5, ±12, ±15

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-22209

Standard Microcircuit Drawing Number

SVLHF5000S Series Similar Part Number

Standard Microcircuit Drawing Number

SVLHF5000S Series Similar Part Number

5962L2220901HXC

5962L2220901HXA

5962L2220901HYC

5962L2220901HYA

5962L2220901KXC

5962L2220901KXA

5962L2220901KYC

5962L2220901KYA

5962L2220902HXC

5962L2220902HXA

5962L2220902HYC

5962L2220902HYA

SVLHF5005D/H+

SVLHF5005D/H+-E

SVLHF5005DF/H+

SVLHF5005DF/H+-E

SVLHF5005D/K

SVLHF5005D/K-E

SVLHF5005DF/K

SVLHF5005DF/K-E

SVLHF5012D/H+

SVLHF5012D/H+-E

SVLHF5012DF/H+

SVLHF5012DF/H+-E

5962L2220902KXC

5962L2220902KXA

5962L2220902KYC

5962L2220902KYA

5962L2220903HXC

5962L2220903HXA

5962L2220903HYC

5962L2220903HYA

5962L2220903KXC

5962L2220903KXA

5962L2220903KYC

5962L2220903KYA

SVLHF5012D/K

SVLHF5012D/K-E

SVLHF5012DF/K

SVLHF5012DF/K-E

SVLHF5015D/H+

SVLHF5015D/H+-E

SVLHF5015DF/H+

SVLHF5015DF/H+-E

SVLHF5015D/K

SVLHF5015D/K-E

SVLHF5015DF/K

SVLHF5015DF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

30

VSC30-2800S

15-50

Single 3.3, 5, 12, 15 (trimmable)

30 krad(Si) including LDR

30 MeV/mg/cm²

N/A

N/A

VSC30-2800S Series Similar Part Number

VSC30-283R3S

VSC30-2805S

VSC30-2812S

VSC30-2815S


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

30

VSC30-2800D

15-50

Dual ±5, ±12, ±15

30 krad(Si) including LDR

30 MeV/mg/cm²

N/A

N/A

VSC30-2800D Series Similar Part Number

VSC30-2805D

VSC30-2812D

VSC30-2815D




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

40

SVTR2800D

15-50

Dual ±5, ±8, ±12, ±15

60 krad(Si) including LDR

44 MeV/mg/cm²

N/A

5962-11223

Standard Microcircuit Drawing Number

SVTR2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVTR2800D Series Similar Part Number

5962P1122301HXC

5962P1122301HXA

5962P1122301HYC

5962P1122301HYA

5962P1122302HXC

5962P1122302HXA

5962P1122302HYC

5962P1122302HYA

SVTR2805D/H+

SVTR2805D/H+-E

SVTR2805DF/H+

SVTR2805DF/H+-E

SVTR2812D/H+

SVTR2812D/H+-E

SVTR2812DF/H+

SVTR2812DF/H+-E

5962P1122303HXC

5962P1122303HXA

5962P1122303HYC

5962P1122303HYA

5962P1122304HXC

5962P1122304HXA

5962P1122304HYC

5962P1122304HYA

SVTR2815D/H+

SVTR2815D/H+-E

SVTR2815DF/H+

SVTR2815DF/H+-E

SVTR2808D/H+

SVTR2808D/H+-E

SVTR2808DF/H+

SVTR2808DF/H+-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

40

SVLTR2800S

15-50

Single 3.3, 5, 12, 15 (trimmable)

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-16214

Standard Microcircuit Drawing Number

SVLTR2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVLTR2800S Series Similar Part Number

5962L1621401HXC

5962L1621401HXA

5962L1621401HYC

5962L1621401HYA

5962L1621401KXC

5962L1621401KXA

5962L1621401KYC

5962L1621401KYA

5962L1621402HXC

5962L1621402HXA

5962L1621402HYC

5962L1621402HYA

5962L1621402KXC

5962L1621402KXA

5962L1621402KYC

5962L1621402KYA

SVLTR283R3S/H+

SVLTR283R3S/H+-E

SVLTR283R3SF/H+

SVLTR283R3SF/H+-E

SVLTR283R3S/K

SVLTR283R3S/K-E

SVLTR283R3SF/K

SVLTR283R3SF/K-E

SVLTR2805S/H+

SVLTR2805S/H+-E

SVLTR2805SF/H+

SVLTR2805SF/H+-E

SVLTR2805S/K

SVLTR2805S/K-E

SVLTR2805SF/K

SVLTR2805SF/K-E

5962L1621403HXC

5962L1621403HXA

5962L1621403HYC

5962L1621403HYA

5962L1621403KXC

5962L1621403KXA

5962L1621403KYC

5962L1621403KYA

5962L1621404HXC

5962L1621404HXA

5962L1621404HYC

5962L1621404HYA

5962L1621404KXC

5962L1621404KXA

5962L1621404KYC

5962L1621404KYA

SVLTR2812S/H+

SVLTR2812S/H+-E

SVLTR2812SF/H+

SVLTR2812SF/H+-E

SVLTR2812S/K

SVLTR2812S/K-E

SVLTR2812SF/K

SVLTR2812SF/K-E

SVLTR2815S/H+

SVLTR2815S/H+-E

SVLTR2815SF/H+

SVLTR2815SF/H+-E

SVLTR2815S/K

SVLTR2815S/K-E

SVLTR2815SF/K

SVLTR2815SF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

40

SVLTR2800D

15-50

Dual ±5, ±12, ±15

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-16215

Standard Microcircuit Drawing Number

SVLTR2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVLTR2800S Series Similar Part Number

5962L1621501HXC

5962L1621501HXA

5962L1621501HYC

5962L1621501HYA

5962L1621501KXC

5962L1621501KXA

5962L1621501KXA

5962L1621501KYA

5962L1621502HXC

5962L1621502HXA

5962L1621502HYC

5962L1621502HYC

SVLTR2805D/H+

SVLTR2805D/H+-E

SVLTR2805DF/H+

SVLTR2805DF/H+-E

SVLTR2805D/K

SVLTR2805D/K-E

SVLTR2805DF/K

SVLTR2805DF/K-E

SVLTR2812D/H+

SVLTR2812D/H+-E

SVLTR2812DF/H+

SVLTR2812DF/H+-E

5962L1621502KXC

5962L1621502KXA

5962L1621502KYC

5962L1621502KYA

5962L1621503HXC

5962L1621503HXA

5962L1621503HYC

5962L1621503HYA

5962L1621503KXC

5962L1621503KXA

5962L1621503KYC

5962L1621503KYA

SVLTR2812D/K

SVLTR2812D/K-E

SVLTR2812DF/K

SVLTR2812DF/K-E

SVLTR2815D/H+

SVLTR2815D/H+-E

SVLTR2815DF/H+

SVLTR2815D/K

SVLTR2815D/K

SVLTR2815D/K-E

SVLTR2815DF/K

SVLTR2815DF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

40

SVLTR5000S

30-60

Single 3.3, 5, 12, 15 (trimmable)

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

TBD

Standard Microcircuit Drawing Number

SVLTR5000S Series Similar Part Number

Standard Microcircuit Drawing Number

SVLTR5000S Series Similar Part Number

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

SVLTR503R3S/H+

SVLTR503R3S/H+-E

SVLTR503R3SF/H+

SVLTR503R3SF/H+-E

SVLTR503R3S/K

SVLTR503R3S/K

SVLTR503R3SF/K

SVLTR503R3SF/K

SVLTR5005S/H+

SVLTR5005S/H+

SVLTR5005S/H+

SVLTR5005SF/H+-E

SVLTR5005SF/H+-E

SVLTR5005S/K-E

SVLTR5005S/K-E

SVLTR5005SF/K-E

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

SVLTR5012S/H+

SVLTR5012S/H+-E

SVLTR5012SF/H+

SVLTR5012SF/H+-E

SVLTR5012S/K

SVLTR5012S/K

SVLTR5012S/K

SVLTR5012SF/K-E

SVLTR5015S/H+

SVLTR5015S/H+-E

SVLTR5015SF/H+

SVLTR5015SF/H+

SVLTR5015SF/H+

SVLTR5015SF/H+

SVLTR5015SF/K

SVLTR5015SF/K


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

40

SVLTR5000D

30-60

Single 5, 12, 15

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

TBD

Standard Microcircuit Drawing Number

SVLTR5000D Series Similar Part Number

Standard Microcircuit Drawing Number

SVLTR5000D Series Similar Part Number

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

SVLTR5005D/H+

SVLTR5005D/H+

SVLTR5005D/H+

SVLTR5005DF/H+-E

SVLTR5005D/K

SVLTR5005D/K-E

SVLTR5005D/K-E

SVLTR5005DF/K-E

SVLTR5005DF/K-E

SVLTR5005DF/K-E

SVLTR5005DF/K-E

SVLTR5005DF/K-E

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

TBD

SVLTR5012D/K

SVLTR5012D/K-E

SVLTR5012DF/K

SVLTR5012DF/K-E

SVLTR5012DF/K-E

SVLTR5012DF/K-E

SVLTR5012DF/K-E

SVLTR5015DF/H+-E

SVLTR5015DF/H+-E

SVLTR5015D/K-E

SVLTR5015DF/K

SVLTR5015DF/K


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

40

SVRTR2800S

18-40

Single 3.3, 5, 12, 15 (trimmable)

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-13209

Standard Microcircuit Drawing Number

SVLTR5000D Series Similar Part Number

Standard Microcircuit Drawing Number

SVLTR5000D Series Similar Part Number

5962R1320901HXC

5962R1320901HXA

5962R1320901HYC

5962R1320901HYA

5962R1320901KXC

5962R1320901KXA

5962R1320901KYC

5962R1320901KYA

5962R1320902HXC

5962R1320902HXA

5962R1320902HYC

5962R1320902HYA

5962R1320902KXC

5962R1320902KXA

5962R1320902KYC

5962R1320902KYA

SVRTR283R3S/H+

SVRTR283R3SF/H+

SVRTR283R3SF/H+

SVRTR283R3SF/H+-E

SVRTR283R3S/K-E

SVRTR283R3S/K-E

SVRTR283R3SF/K

SVRTR2805S/H+

SVRTR2805S/H+

SVRTR2805SF/H+

SVRTR2805SF/H+

SVRTR2805SF/H+-E

SVRTR2805S/K-E

SVRTR2805S/K-E

SVRTR2812SF/H+

SVRTR2812SF/H+

5962R1320903HXC

5962R1320903HXA

5962R1320903HYC

5962R1320903HYA

5962R1320903KXC

5962R1320903KXA

5962R1320903KYC

5962R1320903KYA

5962R1320904HXC

5962R1320904HXA

5962R1320904HYC

5962R1320904HYA

5962R1320904KXC

5962R1320904KXA

5962R1320904KYC

5962R1320904KYA

SVRTR2812SF/H+

SVRTR2812SF/H+

SVRTR2812SF/H+

SVRTR2812SF/H+-E

SVRTR2812S/K

SVRTR2812S/K-E

SVRTR2812SF/K

SVRTR2815S/H+

SVRTR2815S/H+

SVRTR2815SF/H+-E

SVRTR2815SF/H+-E

SVRTR2815SF/H+-E

SVRTR2815S/K

SVRTR2815S/K-E

SVRTR2815SF/K

SVRTR2815SF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

40

SVRTR2800D

18-40

Dual ±5, ±12, ±15

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-13210

Standard Microcircuit Drawing Number

SVRTR2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVRTR2800D Series Similar Part Number

SVRTR2807D/H+

SVRTR2807D/H+-E

SVRTR2807DF/H+

SVRTR2807DF/H+-E

SVRTR2807D/K

SVRTR2807D/K-E

SVRTR2807DF/K

SVRTR2807DF/K-E

SVRTR2807D/H+

SVRTR2807D/H+-E

SVRTR2807DF/H+

SVRTR2807DF/H+-E

SVRTR2807D/K

SVRTR2807D/K-E

SVRTR2807DF/K

SVRTR2807DF/K-E

SVRTR2812D/H+

SVRTR2812D/H+-E

SVRTR2812DF/H+

SVRTR2812DF/H+-E

SVRTR2812D/K

SVRTR2812D/K-E

SVRTR2812DF/K

SVRTR2812DF/K-E

SVRTR2815D/H+

SVRTR2815D/H+-E

SVRTR2815DF/H+

SVRTR2815DF/H+-E

SVRTR2815D/K

SVRTR2815D/K-E

SVRTR2815DF/K

SVRTR2815DF/K-E

5962R1321003HXC

5962R1321003HXA

5962R1321003HYC

5962R1321003HYA

5962R1321003KXC

5962R1321003KXA

5962R1321003KYC

5962R1321003KYA

5962R1321004HXC

5962R1321004HXA

5962R1321004HYC

5962R1321004HYA

5962R1321004KXC

5962R1321004KXA

5962R1321004KYC

5962R1321004KYA

SVRTR2805D/H+

SVRTR2805D/H+-E

SVRTR2805DF/H+

SVRTR2805DF/H+-E

SVRTR2805D/K

SVRTR2805D/K-E

SVRTR2805DF/K

SVRTR2805DF/K-E

SVRTR2807D/H+

SVRTR2807D/H+-E

SVRTR2807DF/H+

SVRTR2807DF/H+-E

SVRTR2807D/K

SVRTR2807D/K-E

SVRTR2807DF/K

SVRTR2807DF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

100

SVRFL2800S

18-40

Single 3.3, 5, 12, 15 (trimmable)

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-13233

Standard Microcircuit Drawing Number

SVRFL2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVRFL2800S Series Similar Part Number

5962R1323301HXC

5962R1323301HXC

5962R1323301KXC

5962R1323301KXC

5962R1323301HYC

5962R1323301HYA

5962R1323301KYC

5962R1323301KYC

5962R1323301KYC

5962R1323302HXA

5962R1323302HXA

5962R1323302HXA

5962R1323302HYC

5962R1323302HYA

5962R1323302KYC

5962R1323302KYA

SVRFL283R3S/H+

SVRFL283R3S/H+-E

SVRFL283R3S/K-E

SVRFL283R3S/K-E

SVRFL283R3SF/K

SVRFL283R3SF/K

SVRFL283R3SF/K

SVRFL283R3SF/K-E

SVRFL2805S/H+

SVRFL2805S/H+-E

SVRFL2805S/K

SVRFL2805SF/K-E

SVRFL2805SF/K-E

SVRFL2805SF/K-E

SVRFL2805SF/K-E

SVRFL2805SF/K-E

5962R1323303HXC

5962R1323303HXA

5962R1323303KXC

5962R1323303KXA

5962R1323303HYC

5962R1323303HYA

5962R1323303KYC

5962R1323303KYA

5962R1323304HXC

5962R1323304HXA

5962R1323304KXC

5962R1323304KXA

5962R1323304HYC

5962R1323304HYA

5962R1323304KYC

5962R1323304KYA

SVRFL2812S/H+-E

SVRFL2812S/H+-E

SVRFL2812S/K-E

SVRFL2812S/K-E

SVRFL2812SF/H+

SVRFL2812SF/H+-E

SVRFL2812SF/K-E

SVRFL2812SF/K-E

SVRFL2815S/H+-E

SVRFL2815S/H+-E

SVRFL2815S/K

SVRFL2815SF/H+

SVRFL2815SF/H+

SVRFL2815SF/H+-E

SVRFL2815SF/K

5962R1323304KYA


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

100

SVRFL2800D

18-40

Dual ±5, ±12, ±15 (trimmable)

100 krad(Si) including LDR

85 MeV/mg/cm²

Yes

5962-13234

Standard Microcircuit Drawing Number

SVRFL2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVRFL2800D Series Similar Part Number

5962R1323401HXC

5962R1323401HXA

5962R1323401KXC

5962R1323401KXA

5962R1323401HYC

5962R1323401HYA

5962R1323401KYC

5962R1323401KYA

SVRFL2805D/H+

SVRFL2805D/H+-E

SVRFL2805D/K

SVRFL2805D/K-E

SVRFL2805DF/H+

SVRFL2805DF/H+-E

SVRFL2805DF/K

SVRFL2805DF/K-E

5962R1323403HXC

5962R1323403HXA

5962R1323403KXC

5962R1323403KXA

5962R1323403HYC

5962R1323403HYA

5962R1323403KYC

5962R1323403KYA

SVRFL2815D/H+

SVRFL2815D/H+-E

SVRFL2815D/K

SVRFL2815D/K-E

SVRFL2815DF/H+

SVRFL2815DF/H+-E

SVRFL2815DF/K

SVRFL2815DF/K-E

5962R1323402HXC

5962R1323402HXA

5962R1323402KXC

5962R1323402KXA

5962R1323402HYC

5962R1323402HYA

5962R1323402KYC

5962R1323402KYA

SVRFL2812D/H+

SVRFL2812D/H+-E

SVRFL2812D/K

SVRFL2812D/K-E

SVRFL2812DF/H+

SVRFL2812DF/H+-E

SVRFL2812DF/K

SVRFL2812DF/K-E





Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

120

SVFL2800S

16-40

Single 3.3, 5, 12, 15 (trimmable)

60 krad(Si) including LDR

44 MeV/mg/cm²

N/A

5962-11217

Standard Microcircuit Drawing Number

SVFL2800S Series Similar Part Number

Standard Microcircuit Drawing Number

SVFL2800S Series Similar Part Number

5962P1121701HXC

5962P1121701HXA

5962P1121701HYC

5962P1121701HYA

SVFL283R3S/H+

SVFL283R3S/H+-E

SVFL283R3SF/H+

SVFL283R3SF/H+-E

SVFL2805S/H+

SVFL2805S/H+-E

SVFL2805SF/H+

SVFL2805SF/H+-E

SVFL2812S/H+

SVFL2812S/H+-E

SVFL2812SF/H+

SVFL2812SF/H+-E

5962P1121702HXC

5962P1121702HXA

5962P1121702HYC

5962P1121702HYA

SVFL2805S/H+

SVFL2805S/H+-E

SVFL2805SF/H+

SVFL2805SF/H+-E

5962P1121704HXC

5962P1121704HXA

5962P1121704HYC

5962P1121704HYA

SVFL2815S/H+

SVFL2815S/H+-E

SVFL2815SF/H+

SVFL2815SF/H+-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

120

SVFL2800D

16-40

Dual ±5, ±12, ±15 (trimmable)

60 krad(Si) including LDR

44 MeV/mg/cm²

N/A

5962-11214

Standard Microcircuit Drawing Number

SVFL2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVFL2800D Series Similar Part Number

5962P1121401HXC

5962P1121401HXA

5962P1121401HYC

5962P1121401HYA

SVFL2805D/H+

SVFL2805D/H+-E

SVFL2805DF/H+

SVFL2805DF/H+-E

5962P1121403HXC

5962P1121403HXA

5962P1121403HYC

5962P1121403HYA

SVFL2815D/H+

SVFL2815D/H+-E

SVFL2815DF/H+

SVFL2815DF/H+-E

5962P1121402HXC

5962P1121402HXA

5962P1121402HYC

5962P1121402HYA

SVFL2812D/H+

SVFL2812D/H+-E

SVFL2812DF/H+

SVFL2812DF/H+-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

120

SVLFL2800S

16-40

Single 3.3, 5, 12, 15 (trimmable)

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-19210

Standard Microcircuit Drawing Number

SVFL2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVFL2800D Series Similar Part Number

5962L1921001HXC

5962L1921001HXA

5962L1921001KXC

5962L1921001KXA

5962L1921001HYC

5962L1921001HYA

5962L1921001KYC

5962L1921001KYA

SVLFL283R3S/H+

SVLFL283R3S/H+-E

SVLFL283R3S/K

SVLFL283R3S/K-E

SVLFL283R3SF/H+ SVLFL283R3SF/H+-E SVLFL283R3SF/K

SVLFL283R3SF/K-E

5962L1921003HXC

5962L1921003HXA

5962L1921003KXC

5962L1921003KXA

5962L1921003HYC

5962L1921003HYA

5962L1921003KYC

5962L1921003KYA

SVLFL2812S/H+

SVLFL2812S/H+-E

SVLFL2812S/K

SVLFL2812S/K-E

SVLFL2812SF/H+

SVLFL2812SF/H+-E

SVLFL2812SF/K

SVLFL2812SF/K-E

5962L1921002HXC

5962L1921002HXA

5962L1921002KXC

5962L1921002KXA

5962L1921002HYC

5962L1921002HYA

5962L1921002KYC

5962L1921002KYA

SVLFL2805S/H+

SVLFL2805S/H+-E

SVLFL2805S/K

SVLFL2805S/K-E

SVLFL2805SF/H+

SVLFL2805SF/H+-E

SVLFL2805SF/K

SVLFL2805SF/K-E

5962L1921004HXC

5962L1921004HXA

5962L1921004KXC

5962L1921004KXA

5962L1921004HYC

5962L1921004HYA

5962L1921004KYC

5962L1921004KYA

SVLFL2815S/H+

SVLFL2815S/H+-E

SVLFL2815S/K

SVLFL2815S/K-E

SVLFL2815SF/H+

SVLFL2815SF/H+-E

SVLFL2815SF/K

SVLFL2815SF/K-E


Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

120

SVLFL2800D

16-40

Dual ±5, ±12, ±15 (trimmable)

60 krad(Si) including LDR

85 MeV/mg/cm²

N/A

5962-16211

Standard Microcircuit Drawing Number

SVFL2800D Series Similar Part Number

Standard Microcircuit Drawing Number

SVFL2800D Series Similar Part Number

5962L1921101HXC

5962L1921101HXA

5962L1921101KXC

5962L1921101KXA

5962L1921101HYC

5962L1921101HYA

5962L1921101KYC

5962L1921101KYA

SVLFL2805D/H+

SVLFL2805D/H+-E

SVLFL2805D/K

SVLFL2805D/K-E

SVLFL2805DF/H+

SVLFL2805DF/H+-E

SVLFL2805DF/K

SVLFL2805DF/K-E

5962L1921103HXC

5962L1921103HXA

5962L1921103KXC

5962L1921103KXA

5962L1921103HYC

5962L1921103HYA

5962L1921103KYC

5962L1921103KYA

SVLFL2815D/H+

SVLFL2815D/H+-E

SVLFL2815D/K

SVLFL2815D/K-E

SVLFL2815DF/H+

SVLFL2815DF/H+-E

SVLFL2815DF/K

SVLFL2815DF/K-E

5962L1921102HXC

5962L1921102HXA

5962L1921102KXC

5962L1921102KXA

5962L1921102HYC

5962L1921102HYA

5962L1921102KYC

5962L1921102KYA

SVLFL2812D/H+

SVLFL2812D/H+-E

SVLFL2812D/K

SVLFL2812D/K-E

SVLFL2812DF/H+

SVLFL2812DF/H+-E

SVLFL2812DF/K

SVLFL2812DF/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

384

SGRB10012HCS

85 V to 113 V continuous,

120 V transient

Single 12-16 adjustable

100 krad(Si) including LDR

85 MeV/mg/cm²

N/A

N/A

384

SGRB10016HCS

85 V to 113 V continuous, 120 V transient

Single 15.5 to 17.5 adjustable

100 krad(Si) including LDR

85 MeV/mg/cm²

N/A

N/A



400

SGRB10020S

95 V to 105 V continuous, 120 V transient

Single 16 to 23.5 adjustable

100 krad(Si) including LDR

85 MeV/mg/cm²

N/A

N/A



400

SGRB10028S

95 V to 105 V continuous, 120 V transient

Single 12 to 28 adjustable

100 krad(Si) including LDR

85 MeV/mg/cm²

N/A

N/A



400

SGRB12028S

98 V to 136 V continuous, 141 V transient

Single 12 to 28 adjustable

100 krad(Si) including LDR

85 MeV/mg/cm²

N/A

N/A







Point Of Load Converters for Space – Non-Isolated

Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

20

SVRGA0508S

3.6 to 7

.8V to 3.4

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

Yes

5962-13217

Standard Microcircuit Drawing Number

SVRGA0508S Series Similar Part Number



5962R1321701HXC

5962R1321701HXA

5962R1321701KXC

5962R1321701KXA

SVPL3R306S/H+

SVPL3R306S/H+-E

SVPL3R306S/K

SVPL3R306S/K-E





Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

22

SVRPL3R306SG

3.1 to 5.5

.8 to 3.8

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-20218

Standard Microcircuit Drawing Number

SVPL3R306S Series Similar Part Number



5962R2021801HYC

5962R2021801HXA

5962R2021801KYC

5962R2021801KXA

SVRPL3R306SGN/H+

SVRPL3R306SG/H+-E

SVRPL3R306SGN/K

SVRPL3R306SG/K-E





Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

33

SVGA0510S

3.5 to 7

.8V to 3.4

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-12219

Standard Microcircuit Drawing Number

SVGA0510S Series Similar Part Number



5962R1221901HXC

5962R1221901HXA

5962R1221901KXC

5962R1221901KXA

SVGA0510S/H+

SVGA0510S/H+-E

SVGA0510S/K

SVGA0510S/K-E





Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

34

SVGA0510SG

3.5 to 7

.8V to 3.4

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17202

Standard Microcircuit Drawing Number

SSVGA0510S Series Similar Part Number



5962R1720201HYC

5962R1720201HXA

5962R1720201KYC

5962R1720201KXA

SSVGA0510SGN/H+

SVGA0510SG/H+-E

SVGA0510SGN/K

SVGA0510SG/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

34

SVFA0510S

3.5 to 7

.8V to 3.4

40 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-16212

Standard Microcircuit Drawing Number

SSVGA0510S Series Similar Part Number



5962P1621201HXC

5962P1621201HXA

5962P1621201KXC

5962P1621201KXA

SVFA0510S/H+

SVFA0510S/H+-E

SVFA0510S/K

SVFA0510S/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

34

SVFA0510SG

3.5 to 7

.8V to 3.4

40 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17203

Standard Microcircuit Drawing Number

SVFA0510S Series Similar Part Number



5962P1720301HYC

5962P1720301HXA

5962P1720301KYC

5962P1720301KXA

SVFA0510SGN/H+

SVFA0510SG/H+-E

SVFA0510SGN/K

SVFA0510SG/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

45

SVPL1209S

3.1 to 13.2

.8 to 5

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17231

Standard Microcircuit Drawing Number

SVPL1209S Series Similar Part Number



5962R1723101HXC

5962R1723101HXA

5962R1723101KXC

5962R1723101KXA

SVPL1209S/H+

SVPL1209S/H+-E

SVPL1209S/K

SVPL1209S/K-E





Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

45

SVPL1209SG

3.1 to 13.2

.8 to 5

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17232

Standard Microcircuit Drawing Number

SVPL1209SG Series Similar Part Number



5962R1723201HYC

5962R1723201HXA

5962R1723201KYC

5962R1723201KXA

SVPL1209SGN/H+

SVPL1209SG/H+-E

SVPL1209SGN/K

SVPL1209SG/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

45

SVPL3R312S

3.1 to 5.5

.8 to 3.8

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17216

Standard Microcircuit Drawing Number

SVPL3R312S Series Similar Part Number



5962R1721601HXC

5962R1721601HXA

5962R1721601KXC

5962R1721601KXA

SVPL3R312S/H+

SVPL3R312S/H+-E

SVPL3R312S/K

SVPL3R312S/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

45

SVPL3R312SG

3.1 to 5.5

.8 to 3.8

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17217

Standard Microcircuit Drawing Number

SVPL3R312SG Series Similar Part Number



5962R1721701HYC

5962R1721701HXA

5962R1721701KYC

5962R1721701KXA

SVPL3R312SGN/H+

SVPL3R312SG/H+-E

SVPL3R312SGN/K

SVPL3R312SG/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

50

SVGA0515S

3.5 to 7

.8V to 3.4

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-12219

Standard Microcircuit Drawing Number

SVGA0515S Series Similar Part Number



5962R1221902HXC

5962R1221902HXA

5962R1221902KXC

5962R1221902KXA

SVGA0515S/H+

SVGA0515S/H+-E

SVGA0515S/K

SVGA0515S/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

51

SVGA0515SG

3.5 to 7

.8V to 3.4

100 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17205

Standard Microcircuit Drawing Number

SVGA0515S Series Similar Part Number



5962R1720501HYC

5962R1720501HXA

5962R1720501KYC

5962R1720501KXA

SVGA0515SGN/H+

SVGA0515SG/H+-E

SVGA0515SGN/K

SVGA0515SG/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

51

SVFA0515S

3.5 to 7

.8V to 3.4

40 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17201

Standard Microcircuit Drawing Number

SVGA0515S Series Similar Part Number



5962P1720101HXC

5962P1720101HXA

5962P1720101KXC

5962P1720101KXA

SVFA0515S/H+

SVFA0515S/H+-E

SVFA0515S/K

SVFA0515S/K-E




Max. Output
Power (W)

Model Series

Input Voltage
(VDC)

Output Voltage (V)

Total Dose

Single Event
Effects (SEE)

Developed for
TOR Compliance

SMD #

51

SVFA0515SG

3.5 to 7

.8V to 3.4

40 krad(Si)
including LDR

SEE 85 MeV/mg/cm2

N/A

5962-17204

Standard Microcircuit Drawing Number

SVFA0515SG Series Similar Part Number



5962P1720401HYC

5962P1720401HXA

5962P1720401KYC

5962P1720401KXA

SVFA0515SGN/H+

SVFA0515SG/H+-E

SVFA0515SGN/K

SVFA0515SG/K-E






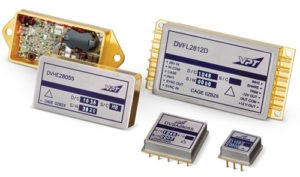

Avionics & Military DC-DC Converters

Ideal for commercial and military aircraft, weapons systems and more, this line of DC-DC power converters is ready to fly when you are.

Save board space, weight, heat, and cost when you create an efficient power system using our isolated DC-DC converters plus our family

of non-isolated, synchronous, buck regulated point of load DC-DC converters. With high efficiencies, wide temperature ranges, and DLA

SMDs for most models, VPT’s wide range of offerings will match your program specifications.

Standard DC-DC Converters

Isolated, thick-film hybrid converters for flight critical applications with extreme temperature requirements. -55 °C to +125 °C.

Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

1.5

DVCH2800S

12-50

Single 3.3, 5, 5.2, 12, 15

DVMSA28

5962-09242

Standard Microcircuit Drawing Number

DVCH2800S Series Similar Part Number

Standard Microcircuit Drawing Number

DVCH2800S Series Similar Part Number

5962-0924201HXC

5962-0924202HXC

5962-0924203HXC

5962-0924204HXC

5962-0924205HXC

DVCH283R3S/H

DVCH2805S/H

DVCH285R2S/H

DVCH2812S/H

DVCH2815S/H

5962-0924201HXA

5962-0924202HXA

5962-0924203HXA

5962-0924204HXA

5962-0924205HXA

DVCH283R3S/H-E

DVCH2805S/H-E

DVCH285R2S/H-E

DVCH2812S/H-E

DVCH2815S/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

1.5

DVCH2800D

12-50

Dual ±5, ±12, ±15

DVMSA28

5962-09243

Standard Microcircuit Drawing Number

DVCH2800D Series Similar Part Number

Standard Microcircuit Drawing Number

DVCH2800D Series Similar Part Number

5962-0924301HXC

5962-0924302HXC

5962-0924303HXC

DVCH2805D/H

DVCH2812D/H

DVCH2815D/H

5962-0924301HXA

5962-0924302HXA

5962-0924303HXA

DVCH2805D/H-E

DVCH2812D/H-E

DVCH2815D/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

6

DVSA2800S

15-50

Single 3.3, 5, 5.2, 12, 15

DVMA28 / DVMSA28

5962-03241

Standard Microcircuit Drawing Number

DVSA2800S Series Similar Part Number

Standard Microcircuit Drawing Number

DVSA2800S Series Similar Part Number

5962-0324101HXC

5962-0324101HYC

5962-0324102HXC

5962-0324102HYC

5962-0324103HXC

5962-0324103HYC

5962-0324104HXC

5962-0324104HYC

5962-0324105HXC

5962-0324105HYC

DVSA283R3S/H

DVSA283R3SF/H

DVSA2805S/H

DVSA2805SF/H

DVSA285R2S/H

DVSA285R2SF/H

DVSA2812S/H

DVSA2812SF/H

DVSA2815S/H

DVSA2815SF/H

5962-0324101HXA

5962-0324101HYA

5962-0324102HXA

5962-0324102HYA

5962-0324103HXA

5962-0324103HYA

5962-0324104HXA

5962-0324104HYA

5962-0324105HXA

5962-0324105HYA

DVSA283R3S/H-E

DVSA283R3SF/H-E

DVSA2805S/H-E

DVSA2805SF/H-E

DVSA285R2S/H-E

DVSA285R2SF/H-E

DVSA2812S/H-E

DVSA2812SF/H-E

DVSA2815S/H-E

DVSA2815SF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

6

DVSA2800D

15-50

Dual ±5, ±7, ±12, ±15

DVMA28 / DVMSA28

5962-03242

Standard Microcircuit Drawing Number

DVSA2800D Series Similar Part Number

Standard Microcircuit Drawing Number

DVSA2800D Series Similar Part Number

5962-0324201HXC

5962-0324201HXA

5962-0324201HYC

5962-0324201HYA

5962-0324203HXC

5962-0324203HXA

5962-0324203HYC

5962-0324203HYA

DVSA2805D/H

DVSA2805D/H-E

DVSA2805DF/H

DVSA2805DF/H-E

DVSA2815D/H

DVSA2815D/H-E

DVSA2815DF/H

DVSA2815DF/H-E

5962-0324202HXC

5962-0324202HXA

5962-0324202HYC

5962-0324202HYA

5962-0324204HXC

5962-0324204HXA

5962-0324204HYC

5962-0324204HYA

DVSA2812D/H

DVSA2812D/H-E

DVSA2812DF/H

DVSA2812DF/H-E

DVSA2807D/H

DVSA2807D/H-E

DVSA2807DF/H

DVSA2807DF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

12.5

DVSB2800D

15-50

Dual ±3.3, ±5

DVMA28

5962-08207



Standard Microcircuit Drawing Number



DVSB2800D Series Similar Part Number



Standard Microcircuit Drawing Number



DVSB2800D Series Similar Part Number

5962-0820701HXC

5962-0820701HXA

DVSB2853R3D/H

DVSB2853R3D/H-E

5962-0820701HYC

5962-0820701HYA

DVSB2853R3DF/H

DVSB2853R3DF/H-E


v

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

12.5

DVGF+2800T

15-50

Triple 3.3/±12, 3.3/±15

DVMH28 / DVMA28

5962-08205

Standard Microcircuit Drawing Number

DVGF+2800T Series Similar Part Number

Standard Microcircuit Drawing Number

DVGF+2800T Series Similar Part Number

5962-0820501HXC

5962-0820501HXA

5962-0820501HYC

5962-0820501HYA

DVGF+283R312T/H

DVGF+283R312T/H-E

DVGF+283R312TF/H

DVGF+283R312TF/H-E

5962-0820502HXC

5962-0820502HXA

5962-0820502HYC

5962-0820502HYA

DVGF+283R315T/H

DVGF+283R315T/H-E

DVGF+283R315TF/H

DVGF+283R315TF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

15

DVHV2800S

15-50

Single 3.3, 5, 5.2, 12, 15 (trimmable)

DVMA28

5962-11226

Standard Microcircuit Drawing Number

DVHV2800S Series Similar Part Number

Standard Microcircuit Drawing Number

DVHV2800S Series Similar Part Number

5962-1122601HXC

5962-1122601HXA

5962-1122601HYC

5962-1122601HYA

5962-1122603HXC

5962-1122603HXA

5962-1122603HYC

5962-1122603HYA

5962-1122605HXC

DVHV283R3S/H

DVHV283R3S/H-E

DVHV283R3SF/H

DVHV283R3SF/H-E

DVHV285R2S/H

DVHV285R2S/H-E

DVHV285R2SF/H

DVHV285R2SF/H-E

DVHV2815S/H

5962-1122602HXC

5962-1122602HXA

5962-1122602HYC

5962-1122602HYA

5962-1122604HXC

5962-1122604HXA

5962-1122604HYC

5962-1122604HYA

5962-1122605HYC

DVHV2805S/H

DVHV2805S/H-E

DVHV2805SF/H

DVHV2805SF/H-E

DVHV2812S/H

DVHV2812S/H-E

DVHV2812SF/H

DVHV2812SF/H-E

DVHV2815SF/H


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

20

DVHF2800S

15-50

Single 1.9, 3.3, 5, 5.2, 12, 15

DVMC28 / DVMH28

5962-03243

Standard Microcircuit Drawing Number

DVHF2800S Series Similar Part Number

Standard Microcircuit Drawing Number

DVHF2800S Series Similar Part Number

5962-0324306HXC

5962-0324306HXA

5962-0324306HYC

5962-0324306HYA

5962-0324302HXC

5962-0324302HXA

5962-0324302HYC

5962-0324302HYA

5962-0324308HXC

5962-0324308HXA

5962-0324308HYC

5962-0324308HYA

5962-0324305HXC

5962-0324305HXA

5962-0324305HYC

5962-0324305HYA

5962-0324307HXC

5962-0324307HXA

DVHF281R9S/H

DVHF281R9S/H-E

DVHF281R9SF/H

DVHF281R9SF/H-E

DVHF2805S/H

DVHF2805S/H-E

DVHF2805SF/H

DVHF2805SF/H-E

DVHF285R7S/H

DVHF285R7S/H-E

DVHF285R7SF/H

DVHF285R7SF/H-E

DVHF2815S/H

DVHF2815S/H-E

DVHF2815SF/H

DVHF2815SF/H-E

DVHF2828S/H

DVHF2828S/H-E

5962-0324301HXC

5962-0324301HXA

5962-0324301HYC

5962-0324301HYA

5962-0324303HXC

5962-0324303HXA

5962-0324303HYC

5962-0324303HYA

5962-0324304HXC

5962-0324304HXA

5962-0324304HYC

5962-0324304HYA

5962-0324309HXC

5962-0324309HXA

5962-0324309HYC

5962-0324309HYA

5962-0324307HYC

5962-0324307HYA

DVHF283R3S/H

DVHF283R3S/H-E

DVHF283R3SF/H

DVHF283R3SF/H-E

DVHF285R2S/H

DVHF285R2S/H-E

DVHF285R2SF/H

DVHF285R2SF/H-E

DVHF2812S/H

DVHF2812S/H-E

DVHF2812SF/H

DVHF2812SF/H-E

DVHF2818S/H

DVHF2818S/H-E

DVHF2818SF/H

DVHF2818SF/H-E

DVHF2828SF/H

DVHF2828SF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

20

DVHF2800D

15-50

Dual ±5, ±12, ±15

DVMC28 / DVMH28

5962-03244

Standard Microcircuit Drawing Number

DVHF2800D Series Similar Part Number

Standard Microcircuit Drawing Number

DVHF2800D Series Similar Part Number

5962-0324401HXC

5962-0324401HXA

5962-0324401HYC

5962-0324401HYA

5962-0324403HXC

5962-0324403HXA

DVHF2805D/H

DVHF2805D/H-E

DVHF2805DF/H

DVHF2805DF/H-E

DVHF2815D/H

DVHF2815D/H-E

5962-0324402HXC

5962-0324402HXA

5962-0324402HYC

5962-0324402HYA

5962-0324403HYC

5962-0324403HYA

DVHF2812D/H

DVHF2812D/H-E

DVHF2812DF/H

DVHF2812DF/H-E

DVHF2815DF/H

DVHF2815DF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

25

DVWR2800T

15-50

Triple 3.3/±12V, 3.3/±15V

DVMC28,DVMH28

5962-16203

Standard Microcircuit Drawing Number

DVWR2800T Series Similar Part Number

Standard Microcircuit Drawing Number

DVWR2800T Series Similar Part Number

5962-1620301HXC

5962-1620301HXA

5962-1620301HYC

5962-1620301HYA

DVWR283R312T/H

DVWR283R312T/H-E

DVWR283R312TF/H

DVWR283R312TF/H-E

5962-1620302HXC

5962-1620302HXA

5962-1620302HYC

5962-1620302HYA

DVWR283R315T/H

DVWR283R315T/H-E

DVWR283R315TF/H

DVWR283R315TF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

30

DVTR2800T

15-50

Triple 5/±12, 5/±15

DVMC28 / DVMH28

5962-16202

Standard Microcircuit Drawing Number

DVTR2800T Series Similar Part Number

Standard Microcircuit Drawing Number

DVTR2800T Series Similar Part Number

5962-1620201HXC

5962-1620201HXA

5962-1620201HYC

5962-1620201HYA

DVTR28512T/H

DVTR28512T/H-E

DVTR28512TF/H

DVTR28512TF/H-E

5962-1620202HXC

5962-1620202HXA

5962-1620202HYC

5962-1620202HYA

DVTR28515T/H

DVTR28515T/H-E

DVTR28515TF/H

DVTR28515TF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

40

DVTR2800S

15-50

Single 2.5, 3.3, 5, 5.2, 7, 8, 9.5, 12, 15, 18, 28 (trimmable)

DVMC28
DVMH28

5962-11224

Standard Microcircuit Drawing Number

DVTR2800S Series Similar Part Number

Standard Microcircuit Drawing Number

DVTR2800S Series Similar Part Number

5962-1122401HXC

5962-1122401HXA

5962-1122401HYC

5962-1122401HYA

5962-1122403HXC

5962-1122403HXA

5962-1122403HYC

5962-1122403HYA

5962-1122405HXC

5962-1122405HXA

5962-1122405HYC

5962-1122405HYA

5962-1122407HXC

5962-1122407HXA

5962-1122407HYC

5962-1122407HYA

5962-1122409HXC

5962-1122409HXA

5962-1122409HYC

5962-1122409HYA

DVTR282R5S/H

DVTR282R5S/H-E

DVTR282R5SF/H

DVTR282R5SF/H-E

DVTR2805S/H

DVTR2805S/H-E

DVTR2805SF/H

DVTR2805SF/H-E

DVTR2812S/H

DVTR2812S/H-E

DVTR2812SF/H

DVTR2812SF/H-E

DVTR2828S/H

DVTR2828S/H-E

DVTR2828SF/H

DVTR2828SF/H-E

DVTR2808S/H

DVTR2808S/H-E

DVTR2808SF/H

DVTR2808SF/H-E

5962-1122402HXC

5962-1122402HXA

5962-1122402HYC

5962-1122402HYA

5962-1122404HXC

5962-1122404HXA

5962-1122404HYC

5962-1122404HYA

5962-1122406HXC

5962-1122406HXA

5962-1122406HYC

5962-1122406HYA

5962-1122408HXC

5962-1122408HXA

5962-1122408HYC

5962-1122408HYA

5962-1122410HXC

5962-1122410HXA

5962-1122410HYC

5962-1122410HYA

5962-1122402HXC

5962-1122402HXA

5962-1122402HYC

5962-1122402HYA

DVTR285R2S/H

DVTR285R2S/H-E

DVTR285R2SF/H

DVTR285R2SF/H-E

DVTR2815S/H

DVTR2815S/H-E

DVTR2815SF/H

DVTR2815SF/H-E

DVTR289R5S/H

DVTR289R5S/H-E

DVTR289R5SF/H

DVTR289R5SF/H-E

DVTR2818S/H

DVTR2818S/H-E

DVTR2818SF/H

DVTR2818SF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

40

DVTR2800D

15-50

Dual ±5, ±8, ±12, ±15

DVMC28 / DVMH28

5962-11225

Standard Microcircuit Drawing Number

DVTR2800D Series Similar Part Number

Standard Microcircuit Drawing Number

DVTR2800D Series Similar Part Number

5962-1122501HXC

5962-1122501HXA

5962-1122501HYC

5962-1122501HYA

5962-1122503HXC

5962-1122503HXA

5962-1122503HYC

5962-1122503HYA

5962-1122505HXC

5962-1122505HXA

DVTR2805D/H

DVTR2805D/H-E

DVTR2805DF/H

DVTR2805DF/H-E

DVTR2815D/H

DVTR2815D/H-E

DVTR2815DF/H

DVTR2815DF/H-E

DVTR2818D/H

DVTR2818D/H-E

5962-1122502HXC

5962-1122502HXA

5962-1122502HYC

5962-1122502HYA

5962-1122504HXC

5962-1122504HXA

5962-1122504HYC

5962-1122504HYA

5962-1122505HYC

5962-1122505HYA

DVTR2812D/H

DVTR2812D/H-E

DVTR2812DF/H

DVTR2812DF/H-E

DVTR2808D/H

DVTR2808D/H-E

DVTR2808DF/H

DVTR2808DF/H-E

DVTR2818DF/H

DVTR2818DF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

50

DVHE2800S

16 – 40

Single 1.9, 2.5, 3.3, 5V (trimmable)

DVMC28

5962-15230

Standard Microcircuit Drawing Number

DVHE2800S Series Similar Part Number

Standard Microcircuit Drawing Number

DVHE2800S Series Similar Part Number

5962-1523001HXC

5962-1523001HXA

5962-1523001HYC

5962-1523001HYA

5962-1523002HXC

5962-1523002HXA

5962-1523002HYC

5962-1523002HYA

5962-1523003HXC

5962-1523003HXA

5962-1523003HYC

5962-1523003HYA

5962-1523004HXC

5962-1523004HXA

5962-1523004HYC

5962-1523004HYA

DVHE281R9S/H

DVHE281R9S/H-E

DVHE281R9SF/H

DVHE281R9SF/H-E

DVHE282R5S/H

DVHE282R5S/H-E

DVHE282R5SF/H

DVHE282R5F/H-E

DVHE283R3S/H

DVHE283R3S/H-E

DVHE283R3SF/H

DVHE283R3SF/H-E

DVHE2805S/H

DVHE2805S/H-E

DVHE2805SF/H

DVHE2805S/H-E

5962-1523001KXC

5962-1523001KXA

5962-1523001KYC

5962-1523001KYA

5962-1523002KXC

5962-1523002KXA

5962-1523002KYC

5962-1523002KYA

5962-1523003KXC

5962-1523003KXA

5962-1523003KYC

5962-1523003KYA

5962-1523004KXC

5962-1523004KXA

5962-1523004KYC

5962-1523004KYA

DVHE281R9S/K

DVHE281R9S/K-E

DVHE281R9SF/K

DVHE281R9SF/K-E

DVHE282R5S/K

DVHE282R5S/K-E

DVHE282R5SF/K

DVHE282R5SF/K-E

DVHE283R3S/K

DVHE283R3S/K-E

DVHE283R3SF/K

DVHE283R3SF/K-E

DVHE2805S/K

DVHE2805S/K-E

DVHE2805SF/K

DVHE2805S/K-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

120

DVFL2800S

16-40

Single 3.3, 5, 5.2, 12, 15, 18, 28 (trimmable)

DVMD28

5962-07243

Standard Microcircuit Drawing Number

DVFL2800S Series Similar Part Number

Standard Microcircuit Drawing Number

DVFL2800S Series Similar Part Number

5962-0724301HXC

5962-0724301HXA

5962-0724301HYC

5962-0724301HYA

5962-0724308HXC

5962-0724308HXA

5962-0724308HYC

5962-0724308HYA

5962-0724306HXC

5962-0724306HXA

5962-0724306HYC

5962-0724306HYA

5962-0724304HXC

5962-0724304HXA

5962-0724304HYC

5962-0724304HYA

5962-0724307HXC

5962-0724307HXA

*T.B.D.

DVFL283R3S/H

DVFL283R3S/H-E

DVFL283R3SF/H

DVFL283R3SF/H-E

DVFL286R3S/H

DVFL286R3S/H-E

DVFL286R3SF/H

DVFL286R3SF/H-E

DVFL289R5S/H

DVFL289R5S/H-E

DVFL289R5SF/H

DVFL289R5SF/H-E

DVFL2815S/H

DVFL2815S/H-E

DVFL2815SF/H

DVFL2815SF/H-E

DVFL2828S/H

DVFL2828S/H-E

DVFL2808S/H

5962-0724302HXC

5962-0724302HXA

5962-0724302HYC

5962-0724302HYA

5962-0724305HXC

5962-0724305HXA

5962-0724305HYC

5962-0724305HYA

5962-0724303HXC

5962-0724303HXA

5962-0724303HYC

5962-0724303HYA

5962-0724309HXC

5962-0724309HXA

5962-0724309HYC

5962-0724309HYA

5962-0724307HYC

5962-0724307HYA

DVFL2805S/H

DVFL2805S/H-E

DVFL2805SF/H

DVFL2805SF/H-E

DVFL2807S/H

DVFL2807S/H-E

DVFL2807SF/H

DVFL2807SF/H-E

DVFL2812S/H

DVFL2812S/H-E

DVFL2812SF/H

DVFL2812SF/H-E

DVFL2818S/H

DVFL2818S/H-E

DVFL2818SF/H

DVFL2818SF/H-E

DVFL2828SF/H

DVFL2828SF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Filter

DLA SMD#

120

DVFL2800D

16-40

Dual ±5, ±12, ±15 (trimmable)

DVME28

5962-07244

Standard Microcircuit Drawing Number

DVFL2800D Series Similar Part Number

Standard Microcircuit Drawing Number

DVFL2800D Series Similar Part Number

5962-0724401HXA

5962-0724401HXC

5962-0724401HYA

5962-0724401HYC

5962-0724403HXA

5962-0724403HXC

5962-0724403HYA

5962-0724403HYC

5962-0724405HXA

5962-0724405HXC

DVFL2805D/H-E

DVFL2805D/H

DVFL2805DF/H-E

DVFL2805DF/H

DVFL2815D/H-E

DVFL2815D/H

DVFL2815DF/H-E

DVFL2815DF/H

DVFL289R5D/H-E

DVFL289R5D/H

5962-0724402HXA

5962-0724402HXC

5962-0724402HYA

5962-0724402HYC

5962-0724404HXA

5962-0724404HXC

5962-0724404HYA

5962-0724404HYC

5962-0724405HYA

5962-0724405HYC

DVFL2812D/H-E

DVFL2812D/H

DVFL2812DF/H-E

DVFL2812DF/H

DVFL286R3D/H-E

DVFL286R3D/H

DVFL286R3DF/H-E

DVFL286R3DF/H

DVFL289R5DF/H-E

DVFL289R5DF/H



Point-of-Load DC-DC Converters

Combine one isolated DC-DC converter with any of these point of load converters for reduced size, weight, heat and cost in your system. -55 °C to +125 °C , 5Vin nominal.

Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

DLA SMD #

10W

DVPL0503S

4.0 – 5.5

.8V to 3.4V

5962-13243

Standard Microcircuit Drawing Number

DVPL0503S Series Similar Part Number

Standard Microcircuit Drawing Number

DVPL0503S Series Similar Part Number

5962-1324301HXC

5962-1324301HXA

DVPL0503S/H

DVPL0503S/H-E

5962-1324301KXC

5962-1324301KXA

DVPL0503S/K

DVPL0503S/K-E

Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

DLA SMD #

16W

DVPL0505S

3.3 – 5.5

.8V to 3.4V

5962-09241

Standard Microcircuit Drawing Number

DVPL0505S Series Similar Part Number

Standard Microcircuit Drawing Number

DVPL0505S Series Similar Part Number

5962-0924101HXC

DVPL0505S/H




Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

DLA SMD #

33W

DVPL0510S

4.5 – 5.5

.8V to 3.4V

5962-13219

Standard Microcircuit Drawing Number

DVPL0510S Series Similar Part Number

Standard Microcircuit Drawing Number

DVPL0510S Series Similar Part Number

5962-1321901HXC

5962-1321901HXA

DVPL0510S/H

DVPL0510S/H-E

5962-1321901KXC

5962-1321901KXA

DVPL0510S/K

DVPL0510S/K-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

DLA SMD #

66W

DVPL0520S

4.5 – 5.5

.8V to 3.4V

5962-13244

Standard Microcircuit Drawing Number

DVPL0520S Series Similar Part Number

Standard Microcircuit Drawing Number

DVPL0520S Series Similar Part Number

5962-1324401HXC

5962-1324401HXA

DVPL0520S/H

DVPL0520S/H-E

5962-1324401KXC

5962-1324401KXA

DVPL0520S/K

DVPL0520S/K-E





DC-DC Converters with Integral EMI Filter

These converters include EMI filtering plus power conversion in one small, light weight, cost-effective package.

Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Performance Data

10

DVEHF2800T

15-50

Triple 5/±12, 5/±15

Contact Factory

DVEHF2800T Series Similar Part Number

DVEHF28512T

DVEHF28515T




Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Performance Data

40

DVETR2800S

15-50

Single 3.3, 5, 5.2, 5.7, 12, 15

Contact Factory

Standard Microcircuit Drawing Number

DVTR2800SSeries Similar Part Number

Standard Microcircuit Drawing Number

DVTR2800SSeries Similar Part Number

5962-1520801HXC

5962-1520801HXA

5962-1520801HYC

5962-1520801HYA

5962-1520803HXC

5962-1520803HXA

5962-1520803HYC

5962-1520803HYA

5962-1520805HXC

5962-1520805HXA

5962-1520805HYC

5962-1520805HYA

DVETR283R3S/H

DVETR283R3S/H-E

DVETR283R3SF/H

DVETR283R3F/H-E

DVETR285R2S/H

DVETR285R2S/H-E

DVETR285R2SF/H

DVTER285R2S/H-E

DVETR2812S/H

DVETR2812S/H-E

DVETR2812SF/H

DVETR2812SF/H-E

5962-1520802HXC

5962-1520802HXA

5962-1520802HYC

5962-1520802HYA

5962-1520804HXC

5962-1520804HXA

5962-1520804HYC

5962-1520804HYA

5962-1520806HXC

5962-1520806HXA

5962-1520806HYC

5962-1520806HYA

DVETR2805S/H

DVETR2805S/H-E

DVETR2805SF/H

DVETR2805SF/H-E

DVETR285R7S/H

DVETR285R7S/H-E

DVETR285R7SF/H

DVTER285R7S/H-E

DVETR2815S/H

DVETR2815S/H-E

DVETR2815SF/H

DVETR2815SF/H-E


Max. Output Power (W)

Model Series

Input DC Voltage (V)

Output Voltage (V)

EMI Performance Data

40

DVETR2800D

15-50

Dual ±5, ±12, ±15

5962-15209

Standard Microcircuit Drawing Number

DVETR2800DSeries Similar Part Number

Standard Microcircuit Drawing Number

DVETR2800DSeries Similar Part Number

5962-1520901HXC

5962-1520901HXA

5962-1520901HYC

5962-1520901HYA

5962-1520903HXC

5962-1520903HXA

DVETR2805D/H

DVETR2805D/H-E

DVETR2805DF/H

DVETR2805DF/H-E

DVETR2815D/H

DVETR2815D/H-E

5962-1520902HXC

5962-1520902HXA

5962-1520902HYC

5962-1520902HYA

5962-1520903HYC

5962-1520903HYA

DVETR2812D/H

DVETR2812D/H-E

DVETR2812DF/H

DVETR2812DF/H-E

DVETR2815DF/H

DVETR2815DF/H-E



Avionics/MIL EMI Filters

Avionics and military grade modules, hybrid, hermetic technology, -55 °C to +125 °C.

Model Series

Input DC Voltage (V)

Max Output Current (A)

For Use With

DVMSA28

0 – 50

0.8

DVCH2800S,DVCH2800D

DVMA28

0 – 50

1.0

DVSA2800S,DVSA2800D

DVMH28

0 – 50

2.0

DVSB2800D,DVGF+2800T,DVHF+2800T,
DVHF2800S, DVHF2800D

DVMC28

0 – 50

4.0

DVHV2800S,DVHV2800D, DVWR2800T,
DVTR2800T,DVTR2800S, DVTR2800D,

DVMD28

0 – 50

7.0

DVTR2800T,DVTR2800S, DVTR2800D,
DVFL2800S,DVFL2800D

DVME28

0 – 50

15.0

DVFL2800S,DVFL2800D

DV704A

0 – 50

2.0

DVSA2800S,DVSA2800D, DVHF+2800T,
DVHF2800S, DVHF2800D,



Space EMI Filters

Radiation immune, space qualified, hybrid hermetic technology, -55 °C to +125 °C.\

Model Series

Input DC Voltage (V)

Max Output Current (A)

For Use With

SVRMH28

18-37.5

2

SVRHF, SVRTR, SVRSA

SVRMC28

18-37.5

4

SVRTR, SVRFL

SVRME28

18-37.5

10

SVRFL

DVMA50

0 – 50

0.5

SVLHF5000S ,SVLHF5000D ,SVLTR5000S ,SVLTR5000D

DVMA28

0 – 50

1.0

SVSA2800S, SVSA2800D

DVMH28

0 – 50

2.0

SVHF2800S,SVHF2800D,SVLHF2800S,SVLHF2800D

DVMC50

0 – 50

2.0

SVLHF5000S ,SVLHF5000D ,SVLTR5000S ,SVLTR5000D

DVMC28

0 – 50

4.0

SVTR2800S,SVTR2800D, SVLTR2800S, SVLTR2800D

DVMD50

0 – 50

4.0

SVLHF5000S ,SVLHF5000D ,SVLTR5000S ,SVLTR5000D

DVMD28

0 – 50

7.0

SVTR2800S, SVTR2800D, SVLTR2800S, SVLTR2800D
SVFL2800S, SVFL2800D, SVLFL2800S, SVLFL2800D

DVME28

0 – 50

15.0

SVFL2800S, SVFL2800D, SVLFL2800S, SVLFL2800D

VSCF1-28

0 – 50

1

VSC5-2800S, VSC15-2800S, VSC15-2800D

VSCF3-28

0 – 50

3

VSC5-2800S, VSC15-2800S, VSC15-2800D, VSC30-2800S, VSC30-2800D

VSCF10-28

0 – 50

10

VSC5-2800S,VSC15-2800S, VSC15-2800D,
VSC30-2800S, VSC30-2800D

DVME50

0 – 60

8.0

SVLHF5000S ,SVLHF5000D ,SVLTR5000S ,SVLTR5000D



COTS EMI Filters

Hi-rel COTS EMI filters, six-sided metal or fully encapsulated epoxy packaging for efficient EMI shielding, -55 °C to +105 °C.



Model Series

Input DC Voltage (V)

Max Output Current (A)

For Use With

VPTF1-28

0 – 50

1.0

VPT5-2800S, VPT15-2800S, VPT15-2800D

VPTF3-28

0 – 50

3.0

VPT5-2800S, VPT15-2800S, VPT15-2800D, VPT30-2800S, VPT30-2800D, VPT30-2800T

VPTF10-28

0 – 50

10.0

VPT5-2800S,VPT15-2800S, VPT15-2800D,
VPT30-2800S, VPT30-2800D,VPT100-2800S, VPT100+2800S, VPT100+2800D

DVMN28

0 – 50

12.0

DV200-2800S, DV200-2800D

VPTF20-28

0 – 50

20.0

VPT5-2800S,VPT15-2800S, VPT15-2800D,
VPT30-2800S, VPT30-2800D,VPT100-2800S, VPT100+2800S, VPT100+2800D

VXRF2-28

0 – 60

2.0

VXR7-2800S,VXR15-2800S

VXRF5-28

0 – 60

5.0

VXR7-2800S, VXR15-2800S, VXR30-2800S

VXRF10-28

0 – 60

10.0

VXR30-2800S, VXR100-2800S

VXRF20-28

0 – 60

20.0

VXR100-2800S

VXRF50-28

0 – 60

50.0

VXR250-2800S



Inrush Current Limiter

Inrush Current Limiter, avionics and military grade, hybrid, hermetic technology, -55 °C to +125 °C.

Model Series

Max Output Power (W)

Input DC Voltage (V)

OutputCurrent (A)

Use With

DVCL

200

0 – 50

11

DV Series DC-DC Converters and EMI Filters

SVCL

100

0 – 50

5.5

SV Series DC-DC Converters and EMI Filters

Transient Suppression

Control EMI and suppress transients in one efficient module, -55 °C to +125 °C.

Model Series

Input DC Voltage (V)

Max Output Current (A)

For Use With

VPTc10-28

-40 – +40

10.0

VPT5-2800S,VPT15-2800S, VPT15-2800D,
VPT30-2800S, VPT30-2800D,
VPT100-2800S, VPT100+2800S, VPT100+2800D

VPTi10-28

-40 – +40

10.0

VPT5-2800S,VPT15-2800S, VPT15-2800D,
VPT30-2800S, VPT30-2800D,
VPT100-2800S, VPT100+2800S, VPT100+2800D

DVMN28

0 – 50

14.0

DV200

Other COTS Modules

Power Conditioning Module (VPTPCM) and Bus Converter Module 270V to 28V (VPTHVM). -55 °C to +100 °C.

Model Series

Max Output Power (W)

Input DC Voltage (V)

Output Voltage (V)

Use With

VPTPCM-12

120

6 – 40

17 – 40

DV and VPT Series DC-DC Converters

VPTHVM-270

200

180 – 350

26 – 30

VPT Series DC-DC Converters

Additional Accessories

Lead Extenders and Thermal Pads that work with many VPT DC-DC Converters and EMI Filters.

Model Series

Use With

A9001 Lead Extender

Side Leaded VPT Packages

Thermal Pads

DV, VPT, and VXR Series DC-DC Converters
